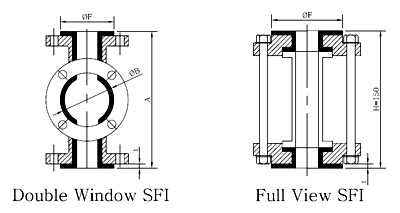

PTFE lined sight glass FV & DW








Double Window





Nominal size
ØF
A
ØB
t
Inch
mm
mm
mm
mm
mm
1"
25
48
160
38
5
1.1/2"
40
69
200
65
5
2"
50
88
320
80
5
2.1/2"
65
105
290
88
5
3"
80
118
310
100
5
4"
100
151
350
125
5
6"
150
204
406
135
5
8"
200
256
458
175
5




Steel frame: Fabricated from ASTM A 106 Grade B schedule 40 pipe

Flange: IS 2062 Grade B. ANSI B16.5, 150#for drilled holes

Cover plate: IS 2062 Grade B

Lining: Pure PTFE in compliance with ASTM D 1457, white in colour

Lining thickness: 3 to 7 mm, exceeds the relevant ASTM F- 1545 standard specs

Glasses: Toughned glass, high temperature and pressure oil tempered quenched light and sight glass as per BS 3463/75

Operating temperature: -29 to 260 deg. C

Operating pressure: Vaccume to 6 kq / cm. sq.

Hydrostatic pressure ted: 10 kg / cm. sq

Air leak bust: 3 kg / cm. sq.

Spark test: 10 KV
